USA Clad Wood

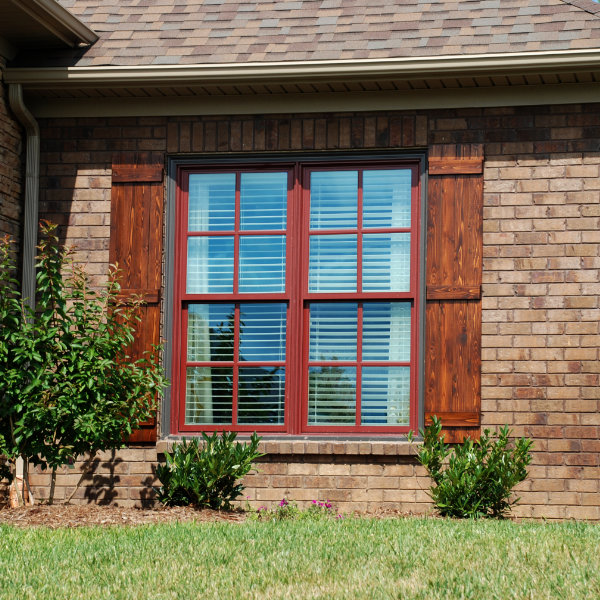

Comfort-Tilt Double Hung Window
The Comfort-Tilt is our performance double-hung window. It features uniform sash rails and stiles and a floating jamb liner with spring balances.
Product Features
• Uniform Sash Stiles and Rails• Vertical Raise and Lower Sash Operation• Tilt-In Sashes• Finger Release Tilt-Sash Latches• Spring Balance System• Concealed Jamb System• Positive Contact Floating Jamb Liners• Locking-When-Tilted Sash Balance Shoes• Standard Jamb Depth = 4-9/16"Series Features
• Extruded Aluminum Exterior• Clear Pine Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Black Glazing Channel• Complete Weather Seal ProtectionProduct Operation
A double hung is the traditional sash-over-sash, raise, and lower window. The two sashes overlap near the middle of the window to form a check rail where they lock together. One or two cam-action locks, depending on the size of the window, secure the sashes. A pair of finger-release tilt latches engage the side sash tracks and can be disengaged to tilt the sash inward for cleaning or other access. Locking-when-tilted balance shoes help hold the sash in place when tilted.
Spring balances assist in raising, lowering, and holding the sashes in place when operating. The spring balance system is housed within a pair of vinyl jamb liners.
Exterior Screen Mounting
Exterior-mounted screens are available to help keep out insects when the sash is open. See Screen Options for more information.
Jamb Depth
The standard jamb depth is 4-9/16”. A jamb depth of 6-9/16" is achieved with 2" extensions. Additional jamb options are available. See Jamb Options for more information.
Product Data Sheet
Download PDFDouble Hung Options
Click on the tabs below to view the various options available for this product.
All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.
Exterior Color Options
An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.
Exterior Trim OptionsConfigurations include a standard 50/50 sash split as well 40/60 Cottage and 60/40 Oriel proportions. Double Hung windows can be mulled together for multi-wide units or with compatible-sized Fixed Lites.
Standard 50/50 Sash Split
Cottage 40/60 Sash Split
Oriel 60/40 Sash Split
Our clad-wood products feature clear pine interiors that are ideally suited for staining or painting. Choose to have your windows and doors delivered without any interior finish so that you can stain or paint them yourself or have them primed or painted at the factory with your choice of one of our standard interior finish colors.
Cam-Action Lock & Keeper
Finger Release Tilt Latches
Double-hung windows feature cam-action sash locks and finger-release tilt latches. See the hardware options on our Hardware Page.
Hardware Options
Double-hung windows have a standard jamb depth of 4-9/16”. Extensions can be applied for 6-9/16” and other jamb depths.
Jamb Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.
Glass OptionsQuick Links to our Glass Types
Glass stops are available in standard and contemporary profiles for most products.
Glass Stops
Several grille systems are available to add lite division to the glass area.
Grille Types
Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.
Grille Patterns
Screens are available to help keep insects from entering through a window that is open for ventilation.
Screen OptionsContent Area 12
Vertical Raise and Lower Sash Operation
Double Hung windows feature a pair of sashes, one hung above the other. The top sash is placed towards the exterior of the window frame, while the bottom sash is placed towards the interior. This allows them to pass by each other when the bottom sash is raised to open or the top sash is lowered to open. The checkrail is the meeting point where the two closed sashes overlap and seal against each other.
Tilt-In Sashes
All Sun double-hung windows feature Tilt-In Sashes. This allows access to the exterior surface of the sash from the inside of the home or building. This can be helpful for cleaning or servicing purposes. Once tilted, the sashes can also be easily removed from the window, again for cleaning or servicing purposes or to open up access through the window opening.
Spring Balance System
The Balance System helps to compensate for the weight of the sash to make it easier to raise and lower. It also helps to keep it in position when you reach the amount of opening desired.
The Comfort-Tilt double hung uses a Spring Balance System housed within our floating jamb liners to achieve this purpose.
Positive Contact Floating Jamb Liners
Our Positive Contact Floating Jamb Liners are a pair of vinyl jamb liners that insert into a pocket on the sides of the window. They have a flexing spring fin on the back that allows them to maintain positive contact with the sides of the sashes. This also functions as a weather seal. The spring balance system is housed within the jamb liner sash guide tracks.
Locking-When-Tilted Sash Balance Shoes
When the sash is tilted to approximately 90°, the balance shoes tighten against the jamb track to help keep the sash stable in that position. This can help while you hold the sash in place. It will also keep the balance shoes in that position if you remove the sash.
