Divided Lite Options / Grille Systems

Grille Systems Add Divided Lite Designs to Windows and Doors

While an open, unobstructed view is often sought after, the design accent added by a divided lite grille system can add a distinctive touch to a home or office.

Sun offers a variety of grille systems and patterns to elevate your design.

Grille Systems

GrilleTypes_SDL_Wood Raised_1-0
5/8' Profile
1' Profile
1-1/4' Profile
2-1/4' Profile

Simulated Divided Lite

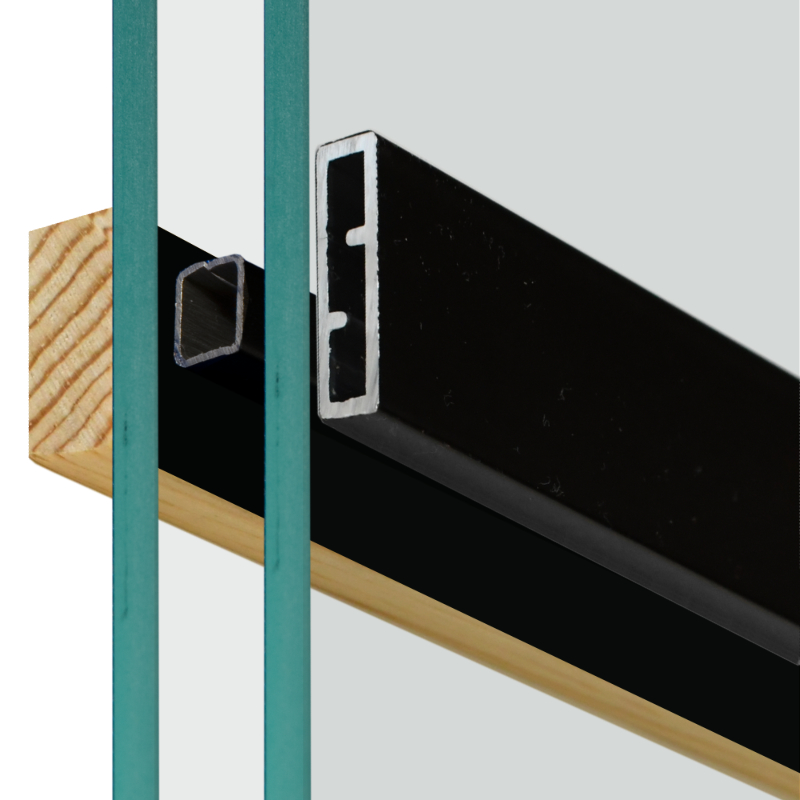

Raised Profile / Wood Interior

Exterior: raised profile, aluminum grille bar, permanently applied
Interior: wood grille, permanently applied

Between: black shadow bar sealed between the glass
Bar Profile: raised
Bar Profile Width: 5/8”, 1”, 1-1/4”, 2-1/4”
Exterior Bar Color: any clad exterior color
Interior Wood Grille Finish: matches the interior finish of the product
Application: Clad Wood Products

USA/Clad Wood


GrilleTypes_SDL_Wood Low_1_0
5/8' Profile
1' Profile
1-1/4' Profile
2-1/4' Profile

Simulated Divided Lite

Low Profile / Wood Interior

Exterior: low profile, aluminum grille bar, permanently applied
Interior: wood grille, permanently applied

Between: black shadow bar sealed between the glass
Bar Profile: low
Bar Profile Width: 5/8”, 1”, 1-1/4”, 2-1/4”
Exterior Bar Color: any clad exterior color
Interior Wood Grille Finish: matches the interior finish of the product
Application: Clad Wood Products

USA/Clad Wood


GrilleTypes_SDL_Raised Raised_1-0
5/8' Profile
1' Profile
1-1/4' Profile
2-1/4' Profile

Simulated Divided Lite

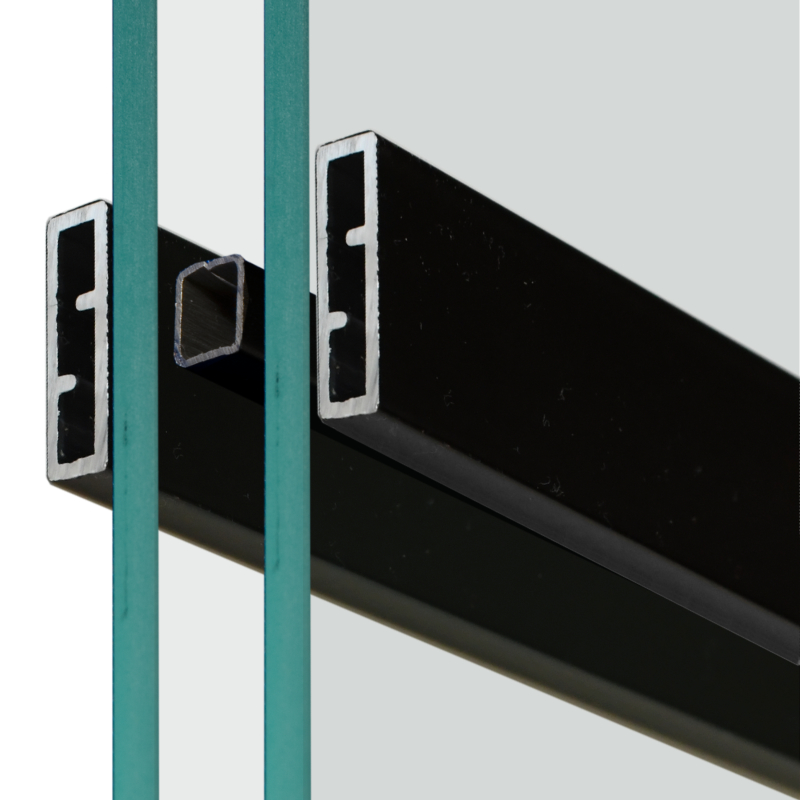

Raised Profile / Raised Interior

Exterior: raised profile, aluminum grille bar, permanently applied
Interior: raised profile, aluminum grille bar, permanently applied
Between: black shadow bar sealed between the glass
Bar Profile: raised/raised
Bar Profile Width: 5/8”, 1”, 1-1/4”, 2-1/4”
Exterior Bar Color: any clad exterior color
Interior Bar Color: matches the interior color of the product
Application: Clad Vinyl Products

Patriot/Clad Vinyl


GrilleTypes_GBG_0 75
5/8' Profile

Grilles Between Glass

Contoured Profile

Exterior: not applicable
Interior: not applicable
Between: contoured aluminum grille
Bar Profile: contoured
Bar Profile Width: 3/4”
Bar Color: white, vanilla, beige, sand, bronze, black
Optional: Two-Color Combination = sand/white, bronze/white, black/white
Application: All Products


USA/Clad Wood
Patriot/Clad Vinyl
All-Vinyl
GrilleTypes_WSG_1 0
5/8' Profile
1' Profile
1-1/4' Profile
2-1/4' Profile

Wood Surround Grille

Interior Only

Exterior: not applicable
Interior: wood grille with wood surround, removable
Between: not applicable
Bar Profile: raised
Bar Profile Width: 5/8”, 1”, 1-1/4”, 2-1/4”
Exterior Bar Color: not applicable
Interior Wood Grille Finish: matches the interior finish of the product
Application: Clad Wood Products


USA/Clad Wood


Simulated Checkrail Detail
5/8' Profile
1' Profile

Simulated Checkrail

Using 2-1/4” SDL

This is a special application of the 2-1/4” SDL, used as a horizontal divider to simulate a checkrail. Typically applied to a casement or fixed lite window, it can simulate the look of a double-hung from a distance. It can be used by itself or combined with 5/8”, 1”, or 1-1/4” SDLs.

Any SDL System
Simulated Mull Detail
5/8' Profile
1' Profile

Simulated Mull

Using 2-1/4” SDL

This application of the 2-1/4” SDL simulates the look of a mull or double mull (shown). Typically applied to a casement or fixed lite window as a vertical divider, it gives the appearance of two windows mulled together. It can be used by itself or combined with 5/8”, 1”, or 1-1/4” SDLs.

Any SDL System
