USA Clad Wood
Arch Top Casement
Arch Top Casements are similar to our standard Casements with the addition of an arched top. Arch Top Casements are jamb hinged with Left or Right hinged options. Hinging is specified as viewed from the exterior.
Product Features
• Arched Top• Full View Sash• Crank Out Sash Operation• Full Opening Ventilation• Folding Operator Handle• Single Lever Multi-point Latching System• Interior Screen Mounting Channel• Standard Jamb Depth = 4-9/16"Series Features
• Extruded Aluminum Exterior• Clear Pine Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Black Glazing Channel• Complete Weather Seal ProtectionProduct Operation
A single lever handle raises to release the multi-point sash latches while a folding operator handle accesses the crank-out mechanism to open and close the sash.
Arch Top Casements use standard jamb-mounted hinges. The hinges are not adjustable.
Interior Screen Channel
Arch Top Casement windows feature an interior screen mounting channel that can be used to hold an optional screen to help keep out insects when the sash is open. Our Extruded Frame Screen fits the Arch Top Casement. See Screen Options for information.
Jamb Depth
The standard jamb depth is 4-9/16”. A jamb depth of 6-9/16" is achieved with 2" extensions. Additional jamb options are available. See Jamb Options for more information.
Product Data Sheet
Download PDFArch Top Casement Options
Click on the tabs below to view the various options available for this product.
All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.
Exterior Color Options
An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.
Exterior Trim OptionsConfigurations of Left hinged, Right hinged, or Fixed are available for any single unit. Double units are Left + Right Hinged or Double Fixed Sash.
Left Hinged
Right Hinged
Double Unit
Our clad-wood products feature clear pine interiors that are ideally suited for staining or painting. Choose to have your windows and doors delivered without any interior finish so that you can stain or paint them yourself or have them primed or painted at the factory with your choice of one of our standard interior finish colors.
Standard/Contoured Operator Cover & Folding Handle
Contemporary Operator Cover & Folding Handle
The casement window operator is available in two styles and a selection of finishes.
Hardware Options
Casement windows have several jamb options to accommodate the needs of your project. Select the link below to explore our jamb options.
Jamb Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.
See Glass OptionsQuick Links to our Glass Types
Glass stops are available in standard and contemporary profiles for most products.
Glass Stops
Several grille systems are available to add lite division to the glass area.
Grille Types
Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.
Grille Patterns
Screens are available to help keep insects from entering through a window that is open for ventilation.
Screen OptionsContent Area 12
Full Opening Ventilation

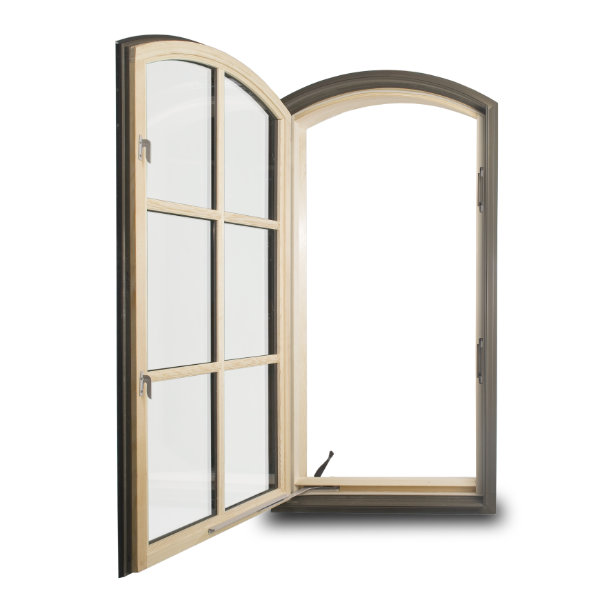

An arch-top casement window sash can be opened fully to provide ventilation through the entire window opening. Compare this to a double-hung window, which can only open to expose less than half the entire window opening. This is a nice benefit for those who enjoy letting in the fresh air.
Single Lever Multi-point Latching System
The casement sash is secured by a lever-activated latching system. A pair of latching hooks are attached to the opening edge of the sash. These hooks engage the sash keepers that are concealed within the opening side frame. A single lever secures and releases both latching points.
Interior Screen Mounting Channel
Due to the outward opening of the sash, casement windows feature an interior-mounted screen option. The interior wood has a top and bottom channel that helps to hold the screen in place when installed. If you like to open your windows to allow in the fresh air, a screen can help keep insects from coming in through the opening.
Jamb Depth - Standard 4-9/16"
Casement windows, like most of our clad wood products, have a standard jamb depth of 4-9/16”. This is to accommodate typical 2 x 4 wall construction. There are several other jamb options for the casement window to address specific applications and construction designs. See our Jamb Options by clicking on the link below.
