Patriot Clad Vinyl
Casement
The Casement window has a full-view sash and crank-out operation. It offers a broad view when closed and maximum ventilation when fully opened. The plain profile of the sash exterior with its mitered corners and deep glazing stop provides a simple but classic appeal.
Product Features
• Full View Sash• Crank Out Sash Operation• Full Opening Ventilation• Folding Operator Handle• Single Lever Multi-point Latching System• Adjustable Hinge System• Interior Screen Mounting Channel• Standard Jamb Depth = 2-9/16"Series Features
• Extruded Aluminum Exterior• Vinyl Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Complete Weather Seal ProtectionProduct Operation
A single lever handle raises to release the multi-point sash latches while a folding operator handle accesses the crank-out mechanism to open and close the sash. Our hinge system sets pivot points at the top and bottom of the sash to achieve left or right hinging, depending on your choice. Hinging is specified as viewed from the exterior. Sash Snubbers, on the hinge side sash and jamb, are used to prevent sash bowing when the window is in the closed position.
Interior Screen Channel
Casement windows feature an interior screen mounting channel that can be used to hold an optional screen to help keep out insects when the sash is open. Clad Vinyl Casements are compatible with our Roll-Form Screen or the Flex Screen. See Screen Options for information about these screen systems.
Jamb Depth
The jamb depth is 2-9/16”. Jamb extensions increase the jamb depth to 4-9/16” or 6-9/16”. See Jamb Options for more information.
Product Data Sheet
Download PDFCasement Options
Click on the tabs below to view the various options available for this product.
All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.
Exterior Color Options
An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.
Exterior Trim OptionsConfigurations of Left hinged, Right hinged, or Fixed are available for any single unit. One, two, three, and four-panel units are available.
Single Unit
Left Hinged - Rixed - Right Hinged
Double Unit
Left/Right
Triple Unit
Left/Fixed/Right
Quad Unit
Left/Fixed/Fixed/Right
Our clad vinyl products feature an all-vinyl window interior. Finishes available include White and Sand.
A factory-applied Black Film is also available for a contemporary look.
Standard/Contoured Operator Cover & Folding Handle

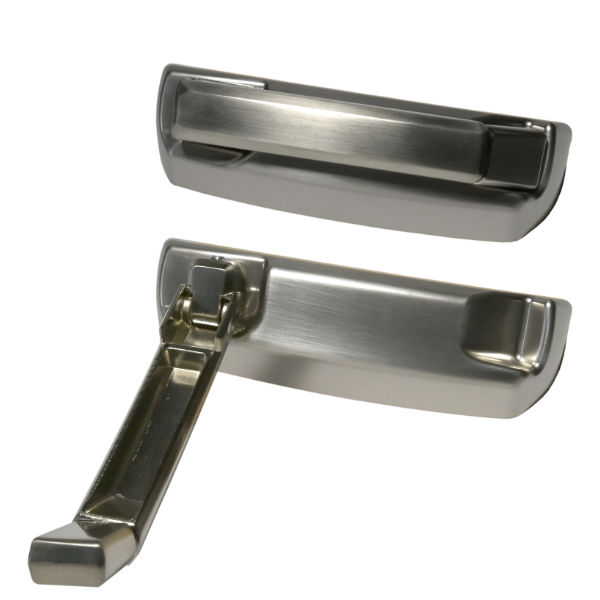

Contemporary Operator Cover & Folding Handle
The casement window operator is available in two styles and a selection of finishes.
Hardware Options
The jamb depth is 2-9/16”. Jamb extensions increase the jamb depth to 4-9/16” or 6-9/16”.
Jamb Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.
See Glass OptionsQuick Links to our Glass Types
Glass stops are available in standard and contemporary profiles for most products.
Glass Stops
Grille systems are available to add lite division to the glass area. Clad Vinyl products are compatible with SDLs using the raised profile bar on both sides. They are also compatible with GBGs. See Grille Types for more information.
Grille Types
Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.
Grille Patterns
Screens are available to help keep insects from entering through a window that is open for ventilation.
Clad Vinyl Casements are compatible with our Roll-Form Screen or the Flex Screen. See Screen Options for information about these screen systems.
Content Area 12
Full Opening Ventilation
A casement window sash can be opened fully to provide ventilation through the entire window opening. Compare this to a double-hung window, which can only open to expose less than half the entire window opening. This is a nice benefit for those who enjoy letting in the fresh air.
Single Lever Multi-point Latching System
The casement sash is secured by a lever-activated latching system. A set of latching hooks are attached to the opening edge of the sash. These hooks engage the sash keepers that are concealed within the opening side frame. A single lever secures and releases all latching points.
Interior Screen Mounting Channel
Due to the outward opening of the sash, casement windows feature an interior-mounted screen option. The vinyl interior has a screen channel that helps to hold the screen in place when installed. If you like to open your windows to allow in the fresh air, a screen can help keep insects from coming in through the opening.
Jamb Depth - 2-9/16"
Clad Vinyl products are designed to have a minimal visual impact on the wall. They are often integrated as part of a Drywall Return finishing system. The 2-9/16” jamb depth works well with this application.
Extensions are also available to fit 4-9/16” and 6-9/16” wall thicknesses.
